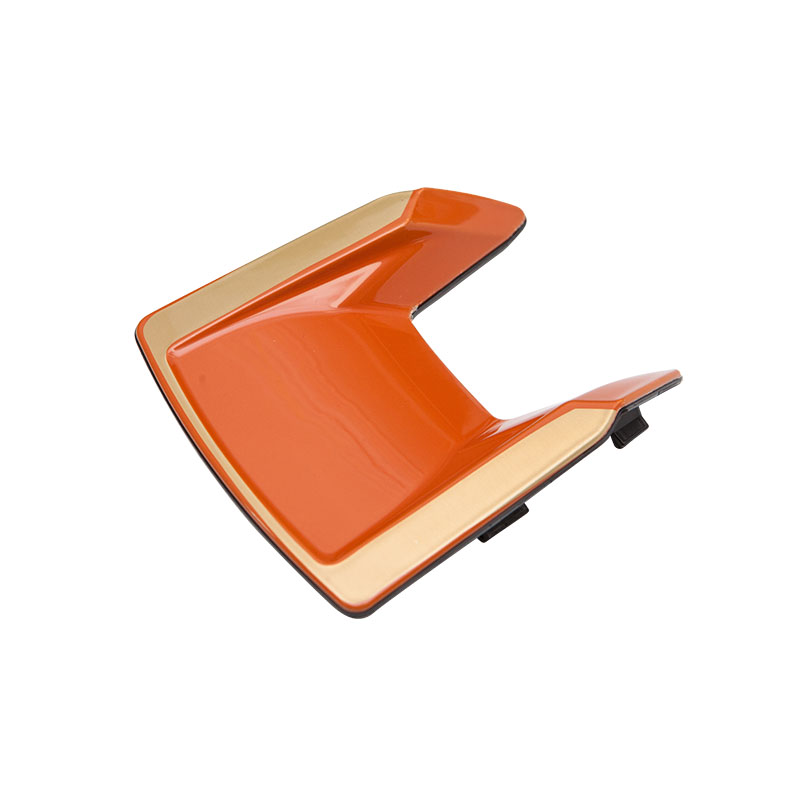

What are the key design considerations when developing an injection mould for auto wheel cover insert over moulding?

2023-10-17

Designing an injection mould for auto wheel cover insert over moulding involves several critical considerations to ensure successful and high-quality production. Here are some key design considerations to keep in mind:

1. Insert Placement and Orientation: Determine the precise location, orientation, and alignment of the inserts within the mould cavity. This affects the final part's functionality, aesthetics, and structural integrity.

2. Mould Cavity Design: Create the mould cavity to accommodate both the insert and the surrounding over moulding material. Ensure proper spacing, clearances, and gating design for optimal material flow and adhesion.

3. Material Compatibility: Choose materials that have compatible melt temperatures, thermal expansion coefficients, and adhesion properties. Proper material selection is crucial for achieving a strong bond between the insert and the over moulded material.

4. Gate and Runner Design: Design the gating system to facilitate even material flow and minimize the risk of air entrapment or voids around the insert. The gate location and size should be carefully determined to avoid damaging the insert.

5. Cooling System: Implement an efficient cooling system to control the cooling rate and prevent warpage, shrinkage, or deformation of the moulded parts. Proper cooling helps ensure consistent part dimensions and quality.

6. Venting: Provide adequate venting to allow air and gases to escape during the moulding process. Inadequate venting can lead to defects like burn marks, trapped air, and poor surface finish.

7. Ejection Mechanism: Design an effective ejection system to safely remove the moulded part, considering the shape and location of the insert. Proper ejection helps prevent damage to the part and mould.

8. Mould Surface Finish: Choose an appropriate mould surface finish to achieve the desired texture and appearance of the final part. Different surface finishes may be required for different areas of the wheel cover.

9. Mould Material Selection: Select a mould material that can withstand the temperatures and pressures of the injection moulding process while providing good thermal conductivity and wear resistance.

10. Mould Alignment and Assembly: Ensure accurate alignment and assembly of the mould components to prevent parting line mismatches, flash, or other defects. Proper assembly is crucial for achieving consistent part quality.

Collaboration between designers, mould makers, and injection moulding experts is essential to address these considerations effectively and achieve successful insert over moulding for auto wheel covers.
