Why Should You Choose the STIS-125 Isolator Switch for Your Electrical Safety Needs?
2025-08-11
When it comes to ensuring safe and reliable power disconnection in industrial and commercial environments, the STIS-125 Isolator Switch stands out as a high-performance solution. Engineered for durability, electrical safety, and compliance with industry standards, it is widely used in power distribution systems, machinery control, and building electrical networks.
This article provides a comprehensive overview of the STIS-125 Isolator Switch, including its features, specifications, benefits, and practical applications, along with answers to frequently asked questions.
Understanding the Role of an Isolator Switch
An isolator switch is a mechanical switching device designed to disconnect a circuit from the power supply for maintenance, inspection, or repair. Unlike regular switches, isolators are intended to provide complete separation between the electrical source and the connected load, preventing accidental contact with live circuits.

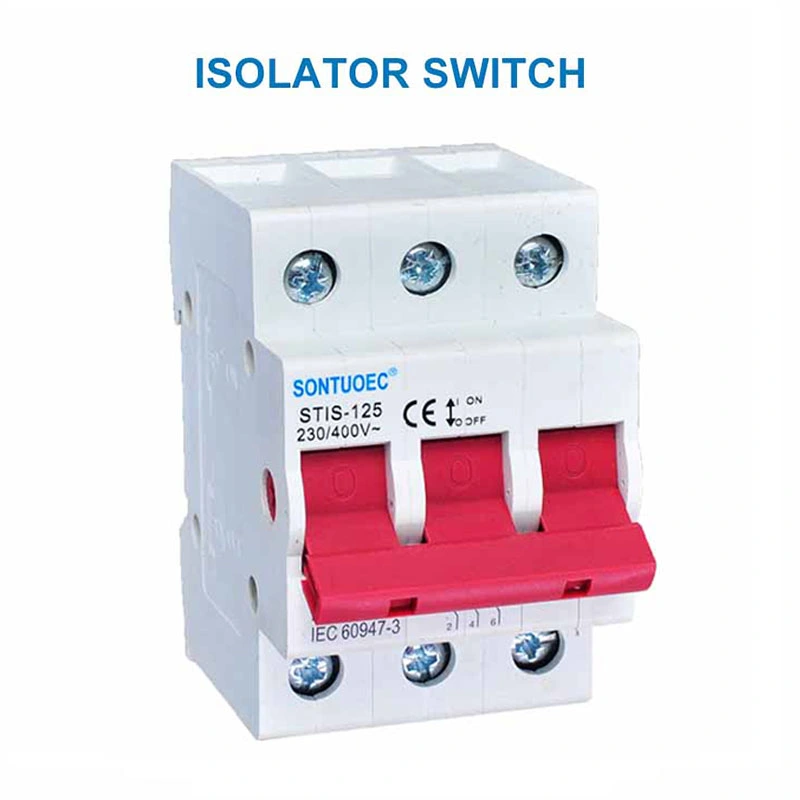

The STIS-125 Isolator Switch is specifically built for situations where electrical safety is non-negotiable, offering high breaking capacity, mechanical endurance, and ease of operation.
Key Features of the STIS-125 Isolator Switch
-
High Current Rating: Supports up to 125A, ensuring compatibility with heavy-duty applications.
-
Robust Construction: Made from high-grade materials for long service life.
-
Compact Design: Saves installation space without compromising safety.
-
Double Break Contacts: Enhances safety by providing visible isolation points.
-
Versatile Mounting Options: Can be installed in panel boards, enclosures, or standalone setups.
-
Compliance with Standards: Manufactured according to IEC and other relevant safety standards.
Technical Specifications
The table below summarizes the main technical parameters of the STIS-125 Isolator Switch:
| Parameter | Specification |
|---|---|
| Model | STIS-125 Isolator Switch |
| Rated Current (In) | 125A |
| Rated Voltage (Ue) | 690V AC |
| Rated Insulation Voltage | 1000V AC |
| Rated Frequency | 50/60Hz |
| Utilization Category | AC-21A / AC-22A / AC-23A |
| Number of Poles | 3P / 4P |
| Mechanical Life | ≥ 10,000 operations |
| Electrical Life | ≥ 2,000 operations |
| Mounting Type | Panel / Enclosure / DIN Rail |
| Operating Temperature | -25°C to +55°C |
| Protection Class | IP20 (standard), higher on request |
| Standards Compliance | IEC 60947-3 |
Benefits of Using the STIS-125 Isolator Switch
-
Enhanced Safety
The switch ensures complete isolation of electrical circuits, minimizing the risk of electric shock during maintenance. -
Versatility
Suitable for industrial, commercial, and residential distribution systems. -
Reliability in Harsh Environments
With high insulation voltage and durable components, it operates reliably in demanding conditions. -
Cost-Effective
Long service life and minimal maintenance reduce overall operating costs. -
Easy Integration
Compact size and flexible mounting options make it compatible with various installations.
Frequently Asked Questions (FAQ)
Q1: What makes the STIS-125 Isolator Switch different from a regular circuit breaker?
A1: The STIS-125 Isolator Switch is designed purely for isolation purposes, providing a visible disconnection from the power source. It does not trip automatically under overload or short-circuit conditions like a circuit breaker. Instead, it ensures the circuit is completely safe to work on during maintenance.
Q2: Can the STIS-125 Isolator Switch be used in outdoor installations?
A2: Yes, it can be used outdoors if installed within a weatherproof enclosure that meets the appropriate IP rating. The standard model has IP20 protection, but higher protection levels are available upon request for outdoor environments.
Q3: Is the STIS-125 Isolator Switch compatible with solar power systems?
A3: Absolutely. With a high rated voltage and robust build, it is suitable for isolating both AC and DC circuits in solar photovoltaic systems. However, for DC applications, ensure the isolator is rated accordingly.
Q4: How often should I replace the STIS-125 Isolator Switch?
A4: Under normal operating conditions and with proper maintenance, the switch can last for many years, often exceeding its rated mechanical life of 10,000 operations. Replacement is typically only required if mechanical or electrical wear is detected.
Q5: Can I install the STIS-125 Isolator Switch myself?
A5: For safety reasons, installation should be carried out by a qualified electrician familiar with local electrical codes and standards.
Why the STIS-125 Isolator Switch is a Smart Investment
Choosing the STIS-125 Isolator Switch means investing in safety, reliability, and compliance. Whether you are upgrading an existing system or building a new one, this isolator offers the performance and peace of mind you need.
For technical inquiries, pricing, and bulk orders, please contact: WENZHOU SANTUO ELECTRICAL CO.,LTD.
